Examples gallery

Twenty-nine scripts in five parts, meant to be read in order. Each is seeded, runs on CPU, prints its measurements as it goes, and writes one figure to its part’s out/. Three of them also write a GIF, where time is the thing being shown.

They are the tutorial layer of this documentation. Rather than repeat them here in prose, this page says what each part is for and what each script proves, so you can pick an entry point.

python examples/00_showcase/01_gravity_inversion.py       # see it work
python examples/01_architecture/01_operator_contract.py   # learn the API
python examples/03_physics/01_seismic_fwi.py              # put it to work

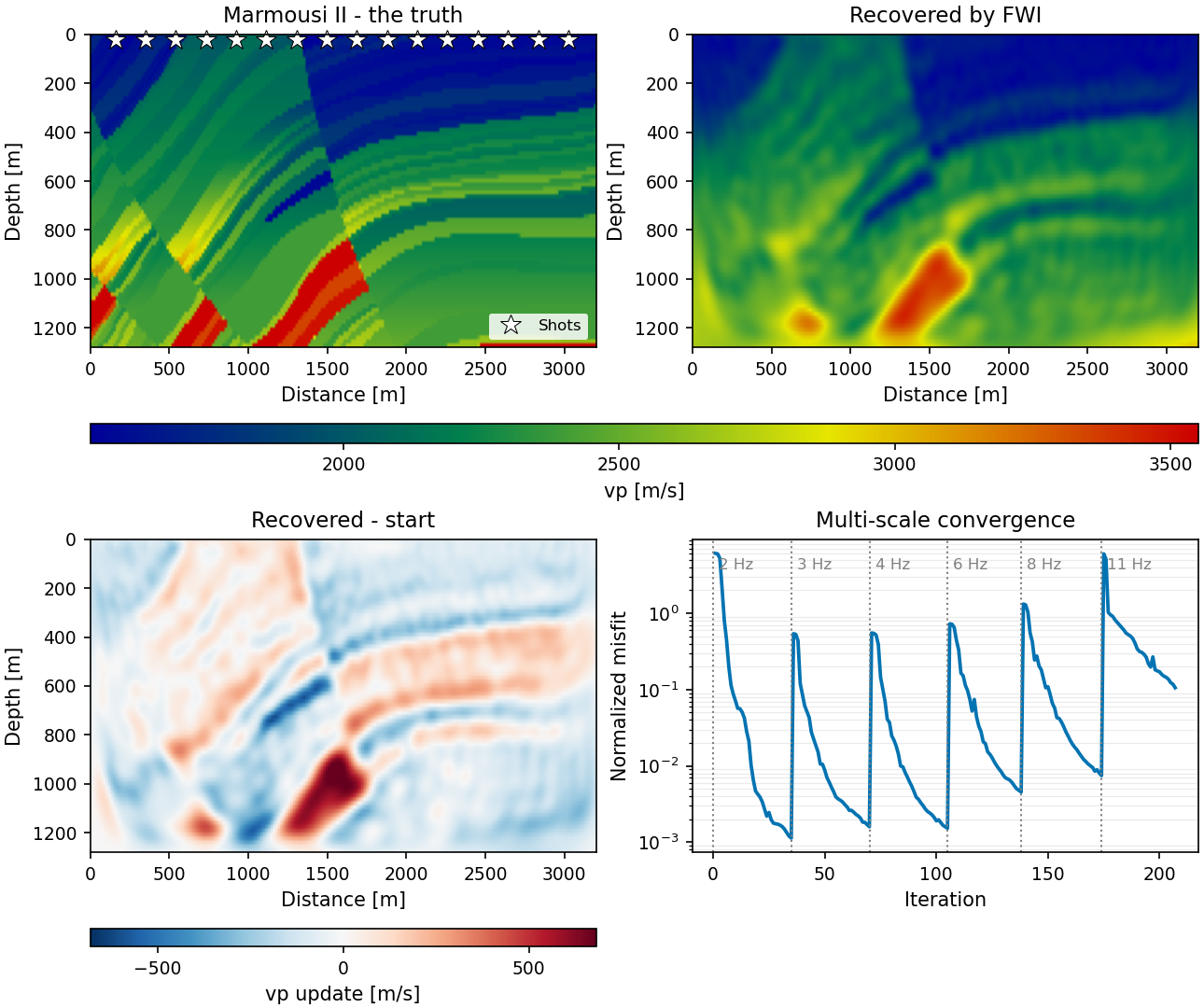

Multi-scale full-waveform inversion on Marmousi II, the longest workflow in the gallery. From examples/03_physics/01_seismic_fwi.py.

Part 0: see it work

Six self-contained scripts, each proving one architectural claim with a running figure.

#	Script	What it proves
01	01_gravity_inversion.py	The whole platform in three objects: physics, problem, solver
02	02_operator_composition.py	Serial chains with @, parallel channels with OperatorBundle, one backward
03	03_mesh_projection_joint_inversion.py	Joint inversion across an unstructured and a structured mesh
04	04_deterministic_bayes_unified.py	Deterministic and Bayesian from one problem, one keyword apart
05	05_differentiability_modes.py	Three gradient mechanisms, all checked against finite differences
06	06_neural_network_integration.py	The unknown as an image, a decoder’s weights, or its latent code

Part 1: understand it

Eight scripts that open one layer each, in the order you meet them.

#	Script	What it opens
01	01_operator_contract.py	ModelState in, ForwardOutput out, and the contract between
02	02_mesh_taxonomy.py	Four meshes, one domain, and the capabilities that decide what may run
03	03_composition_rules.py	How a chain’s contract is derived from its links
04	04_differentiability_levels.py	The ladder from full autograd to a declared custom VJP
05	05_inversion_toolbox.py	Regularizers, bounds and IRLS: where your geology goes
06	06_bayesian_workflow.py	Chains, R-hat, ESS, and the posterior predictive check
07	07_custom_operator.py	Two hooks and two declarations buy you the rest of the platform
08	08_data_io_and_figures.py	SEG-Y, VTK, HDF5 in; geobrain.vis out

Part 2: build the earth

Geostatistics and implicit geological modelling.

#	Script	The step
01	01_estimation_vs_simulation.py	Kriging for the best map, simulation for the right variability
02	02_variogram.py	The input everything downstream inherits, and its own uncertainty
03	03_kriging_estimators.py	Simple, ordinary, universal: what each assumes about the mean
04	04_categorical_and_cutoffs.py	Estimate the probability; do not threshold the estimate
05	05_multivariate.py	A densely sampled proxy is data: collocated cokriging
06	06_implicit_modelling.py	Geometry from contacts and dips, differentiable with respect to them
07	07_case_study.py	The whole sequence, ending in a probability rather than a map

Part 3: tour the physics

Seven full workflows on real earth models: the Marmousi II benchmark for seismic, correlated geostatistical fields elsewhere, and inversions that stop on chi-squared rather than on an iteration count.

#	Script	The family
01	01_seismic_fwi.py	Multi-scale full-waveform inversion on Marmousi II
02	02_dc_resistivity.py	Topography as part of the model; chi-squared as the stopping rule
03	03_induced_polarization.py	Chargeability as an image DC is blind to
04	04_petrophysical_joint_inversion.py	Gravity and magnetics answering which rock is where
05	05_em_induction.py	An airborne sounding inverted for a layered earth
06	06_potential_fields.py	Gravity answers once; magnetics differently at every latitude
07	07_reservoir_flow.py	A five-spot, and one adjoint that prices every cell

Part 4: decide what to measure next

An inversion says what is down there; a survey plan has to say which measurement would change the decision, before it is paid for.

#	Script	The question
01	01_borehole_efficacy_of_information.py	Where should the next hole go, and how deep: costed before drilling

How the figures work

Twenty-nine scripts could easily be twenty-nine styles. They are not: a shared toolkit, _style.py, sits in each part’s directory and every figure is built through it. The rules it enforces are written down in examples/README.md, and the short version is:

• Colour has roles, not ramps. One ramp for a value, one for a signed quantity, one for a magnitude, discrete colours for classes, plus three domain ramps where the convention is older than the argument: seismic amplitude, velocity, resistivity.

• One colour bar per scale, not per panel, because panels drawn on different limits cannot be compared by eye however firmly the caption asks.

• A panel has to earn its place. Every figure is two to six panels.

• A title says what a panel is and what it measured, never how to read it. If a panel needs that, the panel is wrong.

• Animations only where time is the subject.
